Innovative Solutions for Manufacturing Challenges

---

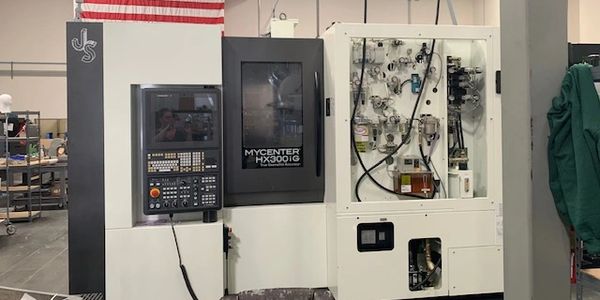

 How CNC Milling Works:

1. Design: The part is first designed using CAD software,

2. CAM: The CAD model is then processed by CAM software, which generates the programmed instructions for the CNC machine.

3. Machining: The generated code is loaded into the CNC mill, and the workpiece is secured in place. The machine then executes the instructions, moving the rotating cutting tool to remove material and form the final part.

Advantages of CNC Milling

• Increased Productivity: Automation and efficient tool changing reduce manual labor and increase production rates.
• Improved Accuracy: Computer control ensures high precision and eliminates human error.
• Versatility: Capable of machining various materials and producing parts with complex shapes.
• Consistency: Produces repeatable results, ensuring consistent quality across multiple parts

 Key Components

• Spindle: Rotates the cutting tool at high speeds.
• Cutting Tool (End Mill): The tool that cuts and shapes the material.
• Worktable: Holds the workpiece in place during the machining process.
• Computer Numerical Control (CNC) System: The brain of the machine, which reads the programmed instructions and controls its movements.
• Tool Changer: An automatic component that switches between different cutting tools for different operations.

 Key Characteristics

• Subtractive Manufacturing: Material is removed from a solid block rather than added.
• High Precision & Accuracy: The computer control allows for extremely precise and repeatable results.
• Automation: Reduces the need for manual operation, increasing efficiency.
• Versatility:Capable of producing complex 3D shapes with tight tolerances.
• Three-Axis to Five-Axis Control: While basic machines operate on three axes (X, Y, and Z), advanced machines can have up to five or more axes of movement for more intricate shapes.

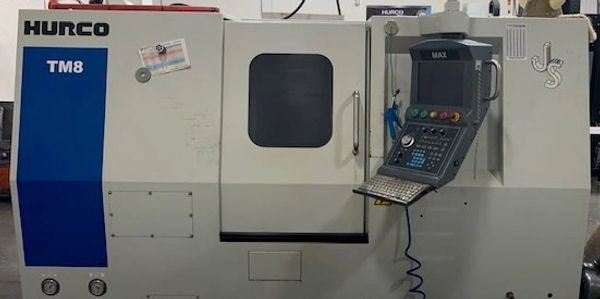

 How CNC Turning Works:

1. Workpiece Rotation: A blank rod or material is secured in a chuck and spun at a programmed speed.
2. Tool Movement: A single-point cutting tool is precisely guided by the CNC system along the rotating workpiece.
3. Material Removal: As the tool moves, it cuts away excess material, gradually shaping the part to its final specifications.
4. Axis Control: The cutting tool moves along different axes to perform various operations:
   • Longitudinal (Z-axis): Moves parallel to the workpiece's rotation to create cylindrical shapes.
   • Radial (X-axis): Moves perpendicular to the workpiece's axis to perform facing, grooving, or parting



   Key Operations

• Straight Turning:Creates a uniform diameter along the length of the part.
• Facing:Cuts a flat surface at the end of the workpiece.
• Boring:Enlarges or creates an internal cylindrical hole within the workpiece.
• Taper Turning:Produces a gradually changing diameter along the part.
• Grooving:Cuts narrow grooves or cavities into the part.
• Drilling:Creates round holes in the workpiece.
• Parting:Cuts the workpiece to separate a finished section from the raw material.
• Threading:Creates helical grooves for screws.

Materials Used
CNC turning is suitable for a broad range of materials, including:

• Metals: Steel, aluminum, brass, copper, and titanium and more.
• Plastics: Nylon, polycarbonate, and Delrin.
• Composites: Certain fiberglass and carbon fiber-reinforced plastics.
